PP Plastic magnetic drive pump – CQF hydrochloric acid pump

CQB PP Plastic magnetic drive pump
Pump name CQF PP magnetic  pump-Magnetic Pump
Type CQ, CQB, CQM, CQZ, CQG, CQF, CQW, MP, FP, FPZ,
Model 10CQF-3,14CQF-5, 16CQF-8, 20CQF-12, 25CQF-15, 32CQF-15, 32CQF-25, 40CQF-20, 50CQF-25, 50CQF-32, 65CQF-25, 65CQF-32.
Manufacturer BOTOU KEMAI PUMPS CO.,LTD
Working Principle Centrifugal, Self-priming, Vortex
Applications Chemical Industry, Pharmacy, Acid Cleaning, Farm Chemicals,waste water treatment,etc.
Driver Electric
Working Temperature -20°C ~ 300°C.
Type of connection Flange, Thread, Quick coupled
Installation position Horizontal,Vertical;
Pump body reinforced PP
Shaft seal: Magnetic coupling
Power 0.18KW ~ 90KW
Caliber: 15mm ~ 150mm
Flow 0.72m3/h ~ 200m3/h
Pressure 1m ~ 125m
Product Features

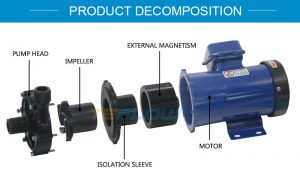

CQB Plastic magnetic drive pump
CQF Plastic magnetic drive pump

CQF Product is mainly made of reinforced PP and all flow-through pump parts adopt injection mould with resistance to most organic and inorganic acid, alkali and salty solutions, applicable for being exposed outdoor with fine anticorrosive performance of stress corrosion cracking. CQF engineering plastic magnetic pump is a new type of pump that uses the working principle of permanent magnet coupling to transfer torque without contact. When the prime mover drives the outer magnetic steel to rotate, it drives the inner magnetic steel rotor to rotate synchronously through the action of the magnetic field, and the inner magnetic steel rotor and the impeller are connected into one, so as to achieve the purpose of driving the impeller to rotate without contact. Because of liquid sealed in the stillness of the isolation set inside, so the magnetic pump is a fully enclosed, without leakage of product, with static seal instead of dynamic seal, magnetic pump flow components of pump in a completely sealed state, conveying fluid leak-off, selection of magnetic pump corrosion, the steel ceramics, reinforced polypropylene as manufacturing material, so it has good corrosion resistance, And can make the real transport medium from pollution.
